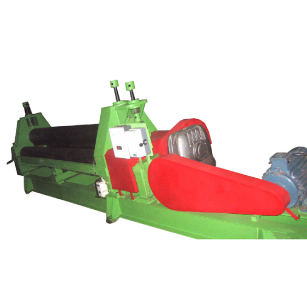

Plate Bending Machine

This is our heavy duty three roll pyramid type power operated plate bending machine in model TPH having capacity to bend 2500 x 25 mm in mild steel. The machine weighs about 6700 kgs and is equipped with 30 HP motor, siemens make on/off starter and reverse/forward switch complete with lubricaton system.

Some of the salient features of our three roll pyramid type plate bending machines are as under:

  • Heavy duty steel fabricated housing amply proportioned to withstand maximum strain.
  • Rollers are of forged EN-8 material and run in collar type gun metal bushes.
  • Base is of heavy duty girders.
  • Centralized lubrication system
  • Drive through a series of hob cut properly hardened steel gears and worm reduction gear box.
  • Screw jack is provided to keep the top roll in horizontal position when trunion is retracted to facilitate removal of formed shells.
  • The machine is supplied complete with :
    - Elicon / Redicon make Reduction gear box
    - Electric motor 3 phase /440 volts / 50 cycles AC
    - Reversible switch (Upto 5 HP)
    - Reversible starter (Above 5 HP)


These Three Roll Pyramid Type Plate Bending Roller Machines are available in a wide range of capacities from 1250 x 3 mm in mild steel up to 3000 x 42 mm.

Kindly ask for details.

Go Top



Light duty Motorised Bending Rollers

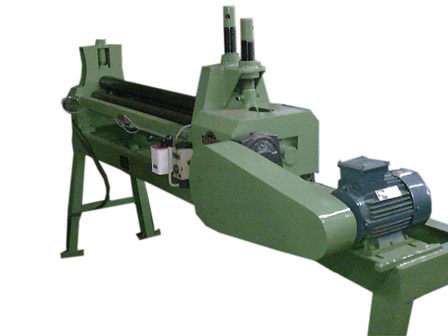

Motorised Light Duty Plate Bending Machine


This is steel fabricated body three roll motorised bending rollers. The machine is supplied complete with stand of suitable height. The drive is through series of properly hardened steel gears. This machine is available in various sizes and is suitable to work with mild steel sheets of upto 1500 x 3.0 mm. For higher capacities, three roll pyramid type plate bending machine is ideal.

Go Top



Hand Operated Bending Rollers

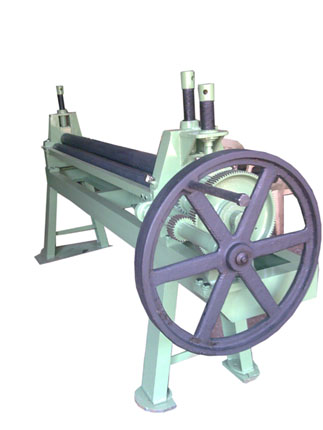

 Hand Operated Bending Roller Machine


This is hand operated three roll pyramid type plate bending machine. The drive is through series of properly hardened gears and is supplied complete with suitable stand of standard height. This machine is available in various sizes and is ideally suitable to work with mild steel sheets of maximum 1500 x 4mm thick. For higher capacities, motorized machine is prefered.

Go Top

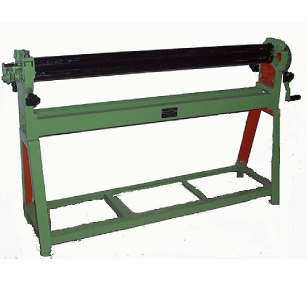

Slip-Out type Bending Rollers

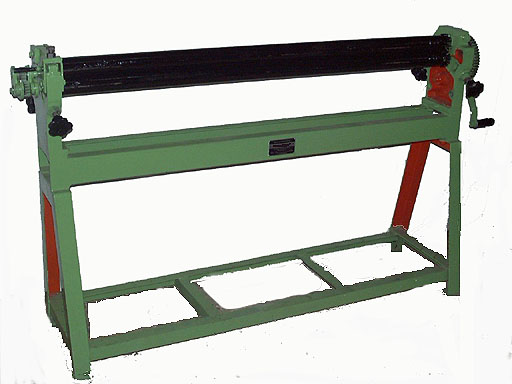

Slip Out Type Bending Rollers


This is two roll driven three roll slip-out type plate bending rollers. Slip-out type beding rollers have all three rolls of same diameter and is ideal machine to take out rapidly formed small diameter cylinders without deformation. The machine is available in various sizes from 300 x 1.0mm capacity upto 1250 x 1.0mm in mild steel capacites.

Motorized slip-out type bending machine is also available. Kindly ask for details.
