Mechanical shearing machines are indispensable in sheet metal industries.Master mechanical shearing machines like treadle shearing machines,hand operated shearing machines,bench shearing machines and guillotine shearing machines and hydraulic shearing machines lead amongst all on account of its versatile design, rigid construction, rigorous tests for the capacities and appearance. Our mechanical shearing machines are specially designed for rapid and continuous cutting of steel sheets of varied widths and trimming them in unlimited lengths.



This is a power operated under crank type guillotine shearing machine featuring all steel body solid construction for accuracy and dependability. The crankshaft runs in gun metal bushes and fly wheel shaft runs in ball bearings for smooth trouble free operation. It is supplied complete with four edge HCHC shearing blades, electric motor, hand operated back gauge, front gauge, side gauge, belts, guards and shot lubricator.

It is available in various sizes from 1250 x 4 mm to 3125 x 5 mm cutting capacity in mild steel with T.S. 42 kg/sq. cms.

Go Top





This is a power operated over crank type guillotine shearing machine similar in construction and features to the above described under crank shearing machine. The over crank design offers larger capacity machines and the range of available models starts from 1250 x 6 mm size to 3125 x 16 mm cutting capacity in mild steel with T.S. 42 kg/sq. cms.

The different shearing lengths size available is: 1250, 1500, 2000, 2500 and 3125 mm with the cutting thickness available in 6, 8, 10,12 and 16mm.

Go Top

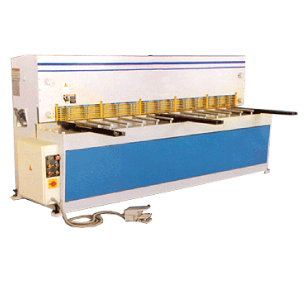

This is a fully hydraulic heavy duty shearing machine. Few of its salient features are as under:

>> Low cutting angle and inclined shearing direction eliminates Bowing and Twist.
>> Roller type guides fitted with antifriction bearings for long life.
>> Quick and easy blade clearance setting by Levers.
>> Hydraulic hold downs ensures perfect cutting.
>> Remote control foot switch.

The machine is supplied complete with electric motor, hand operated back gauge with readout, front support arm, Four edge HCHC shearing blades, finger guard.

This machine is available in various sizes from 1600 x 3.2 mm to 3000 x 4 mm cutting capacity.

Go Top





This fully hydraulic shearing machine is very versatile, reliable and efficient, designed and built to high standard to meet the requirement of precision sheet and plate working applications. Fast and accurate motorised back gauge with front digital readout is a standard with all models of this machine. The back gauge travels on precision lead screw. The machine also features:

Over-driven moving beam with two cylinders operating in series for even cutting.
Mono block DC solenoid valve ensures a smooth reversal hydraulic system.
Rake angle can be varied by pre selection through a selector switch to permit shearing higher thickness than normal capacity.
Front operated rake angle adjustment of 0.5 degree to 2.5 degrees allows optimum rake angle setting required to produce perfect cut with minimum twist and bow.
Top beam is guided by four point roller guides. It is equipped with replaceable hardened liners.
Quick and easy blade clearance setting by calibrated levers.
Individual hydraulic hold downs to ensure perfect cutting.
Shadow line indicator is useful for cutting on scribed lines.
Safety finger guard allows the operator to cut the material close to the cutting edge.

In addition to all the above features, the machine is supplied complete with electricals, fine stroke adjustment rod with limit switches, front sheet supports, squaring arm on left end with steel rule and disappearing stop, hardened transfer bars mounted on table, four edge HCHC shearing blade.

This model of the hydraulic shearing machine is available in cutting lengths of 1600, 2650, 3150 and 4150mm with cutting thickness in mild steel with normal rake angles of 6, 8, 10, 13, 16 and 20mm capacities.
